Yunseity Micro Inverter, 120V 230V Solar Grid Tie Inverter IP65 DC to AC Control, Pure Sine Waving Inverter, MPPT Solar Input 20V-60V Output 80V-280V, for Solar System

Price: $254.79 - $223.32
(as of Feb 12, 2026 15:30:24 UTC – Details)


Specification:
Item Type: Micro Grid Connected Inverter
Model: MaySun600 MaySun700 MaySun800 MaySun1000
Photovoltaic input(DC,PV)
Number of input connectors: 2 Groups
MPPT maximum power point tracking voltage range: 28V-55V
Operating voltage range: 20V-60V
Maximum tributary input voltage: 60V
Starting voltage: 20V
Maximum DC input current: 2x10A 2×11.66A 2×13.33A 2×16.66A
DC output(AC)
Single phase grid type: (US standard) 120V/230V automatic recognition
Rated output power: 580W 650W 760W 950W
Maximum output power: 600W 700W 800W 1000W
Rated AC current: 120VAC 4.83A 5.41 6.33 7.91A
230VAC 2.52A 2.82A 3.3A 4.13A
Rated AC voltage: 120VAC/230VAC
Output voltage range: 120V:80-160V/230V:180-280V
Rated AC frequency: 50-60HZ
Output frequency range: 50Hz:47.5Hz-52.5Hz/60Hz:57.5Hz-62.5Hz
Output power: factor ?0.99
Total harmonic span of output current Total harmonic distortion
Efficiency
Maximum conversion efficiency: 95%
CEC weighted efficiency: 120VAC:92.5%/230VAC:93.5%
MPPT tracking efficiency: 99.90%
Night loss ?700mW
Mechanical data
Operating ambient temperature: -40?~+65?
Storage ambient temperature: -40?~+85?
Maximum current of AC cable: 20A

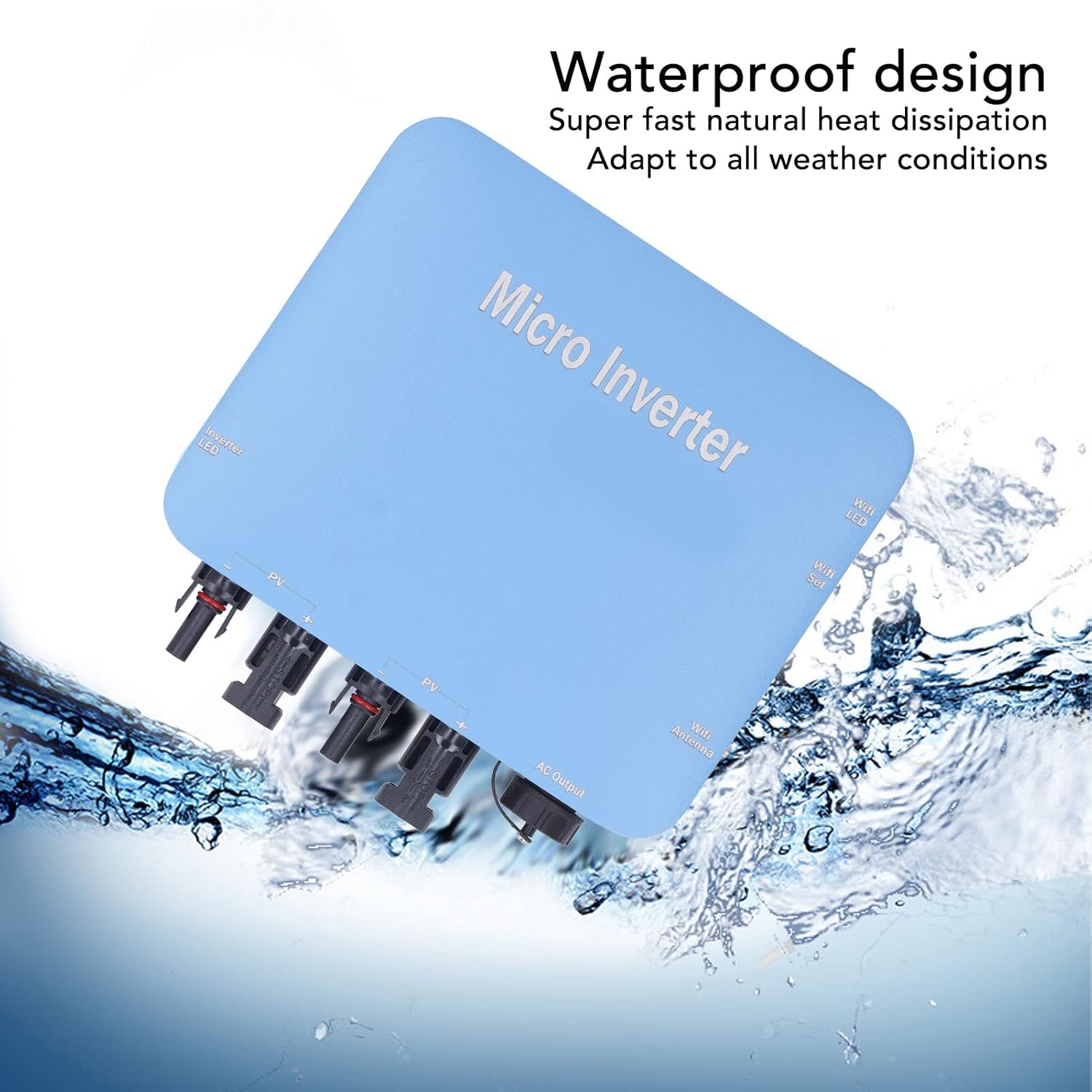

class: IP65
Cooling mode: cooling
Other characteristics
Communication mode communication (cloud monitoring)
Isolation characteristic transformer isolation
Integrated grounding The PE end of the AC cable is the ground cable of the device and has no other ground port
mode Island , voltage , frequency , temperature , current , etc.
Plug specification: US plug
PackageList:
1 x Host
1 x Antenna
1 x AC Power Cable
1 x Mounting Bracket
5 x Mounting Screws
2 x Nut
8 x Gasket
1 x User
WITH HIGH EFFICIENCY: Micro inverter can independently control each component in parallel, to minimize safety risks. The maximum power point tracking function effectively tracks and locks the maximum power output of the solar panel. When the maximum power point of the solar panel is tracked, the power stable output is automatically locked. Two independent maximum power point track(MPPT)
CONTROL: Inverter built in instrument, you can see the working state of each component, can be operated and monitored through or mobile APP, greatly improving the overall efficiency. IP65 easy to work outdoors
PURE SINE OUTPUT: Micro inverter output voltage is stable, pure, can adapt to almost all load electrical appliances
MULTIPLE FEATURES: Solar inverter has island : when power grid failure or power failure inverter automatically stop output, overheating , short circuit , overload , voltage , frequency , temperature , current , etc.
SIMPLE INSTALLATION: Adopt standard input port, bring simple and secure connection. Integrated AC output port, can easily connect more machines to increase system power and easily connect to the grid. The micro inverter can be installed directly behind the module or mounted on a bracket for easy maintenance
