Y&H 10.2KW On/Off Grid Solar Hybrid Inverter Built-in 160A Charge Controller PV Max 500V Input DC48V to AC230V Pure Sine Wave Inverter for Home Energy Storage RV Shed Off-Grid System

Price: $629.99
(as of Feb 06, 2026 03:19:13 UTC – Details)

Product description

Y&H 10200W On/Off Solar Pure Sine Wave Inverter,supports battery-free operation.

1

2

3

4

1

2

3

4

Please note: this inverter is not suitable for 120V voltage.

It is a single-phase 220V output inverter that cannot output 110V/120V power.This solar hybrid inverter does not support parallel or phase-splitting operations in certain areas of the United States.

It provides a single-phase/live-leg 230V output, instead of a 110V AC output.For American household appliances that operate at 110/120V, all you need to do is add a transformer (not included),to step down the 220/240V AC to 110/120V, allowing you to use 110V appliances simultaneously.

To ensure optimal battery capacity, it’s crucial to consider the specific usage requirements of the load and application scenario.Otherwise, there might be issues due to insufficient battery capacity or wasteful over-generation of electricity.For more information, feel free to consult the manual or ask Y&H.

Inverter Mode Specifications:

INVERTER MODEL 10.2KW Input Voltage Waveform Sinusoidal (utility or generator) Nominal Input Voltage 230Vac Max AC Input Voltage 300Vac Nominal Input Frequency 50Hz / 60Hz (Auto detection) Output Voltage Regulation 230Vac±5% Peak Efficiency 93% Overload Protection 3s@≥150% load; 5s@101%~150% load Surge Capacity 2* rated power for 5 seconds Nominal DC Input Voltage 48Vdc Cold Start Voltage 46.0Vdc AC Charging Current (Max) 140Amp PV Array MPPT Voltage Range 90Vdc~500Vdc Dimension (D*W*H), mm 537*390*130 Safety Certification CE

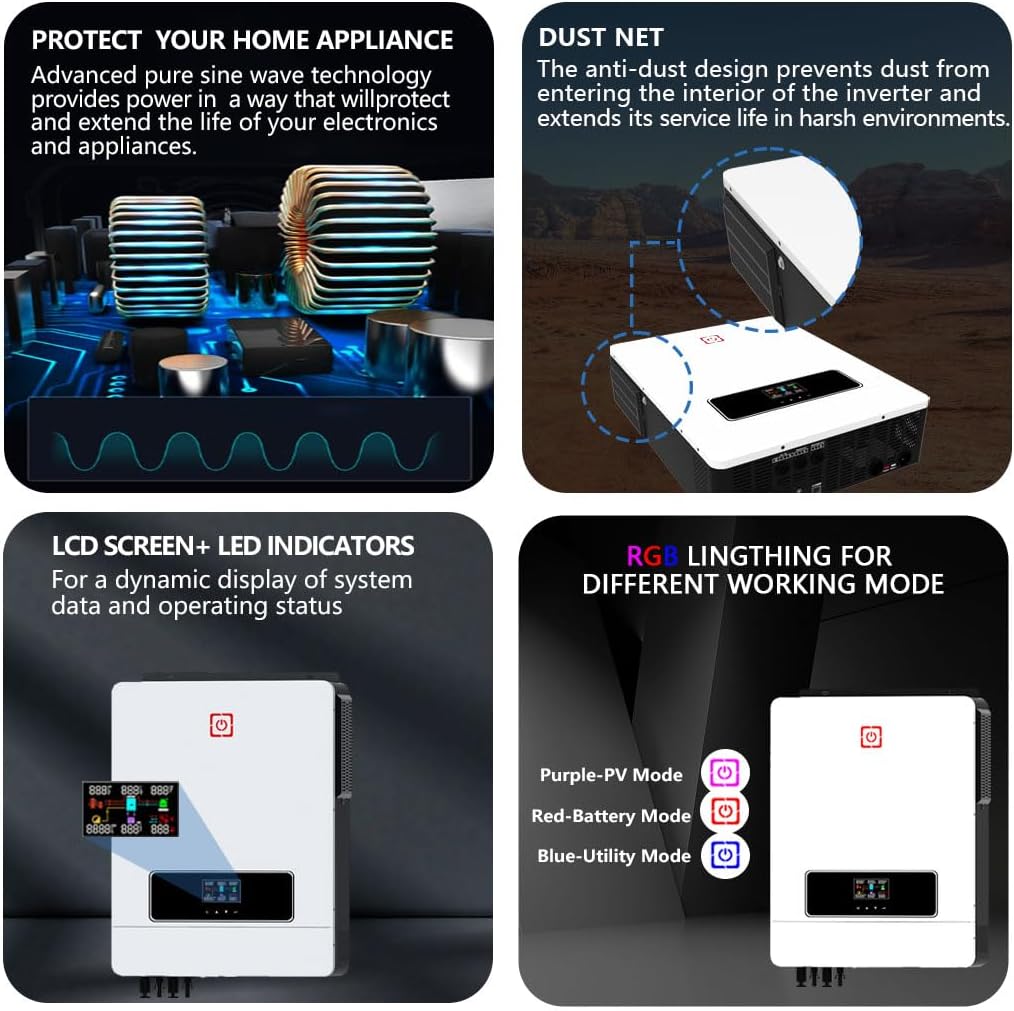

【Pure sine Wave Inverter】10200W Pure sine Wave Inverter is a new all-in-one hybrid solar inverter charger, Support dual PV input, dual MPPT voltage tracking.RGB lingthing for different working mode(Purple-PV Mode;Red-Battery Mode;Blue-Utility Mode)

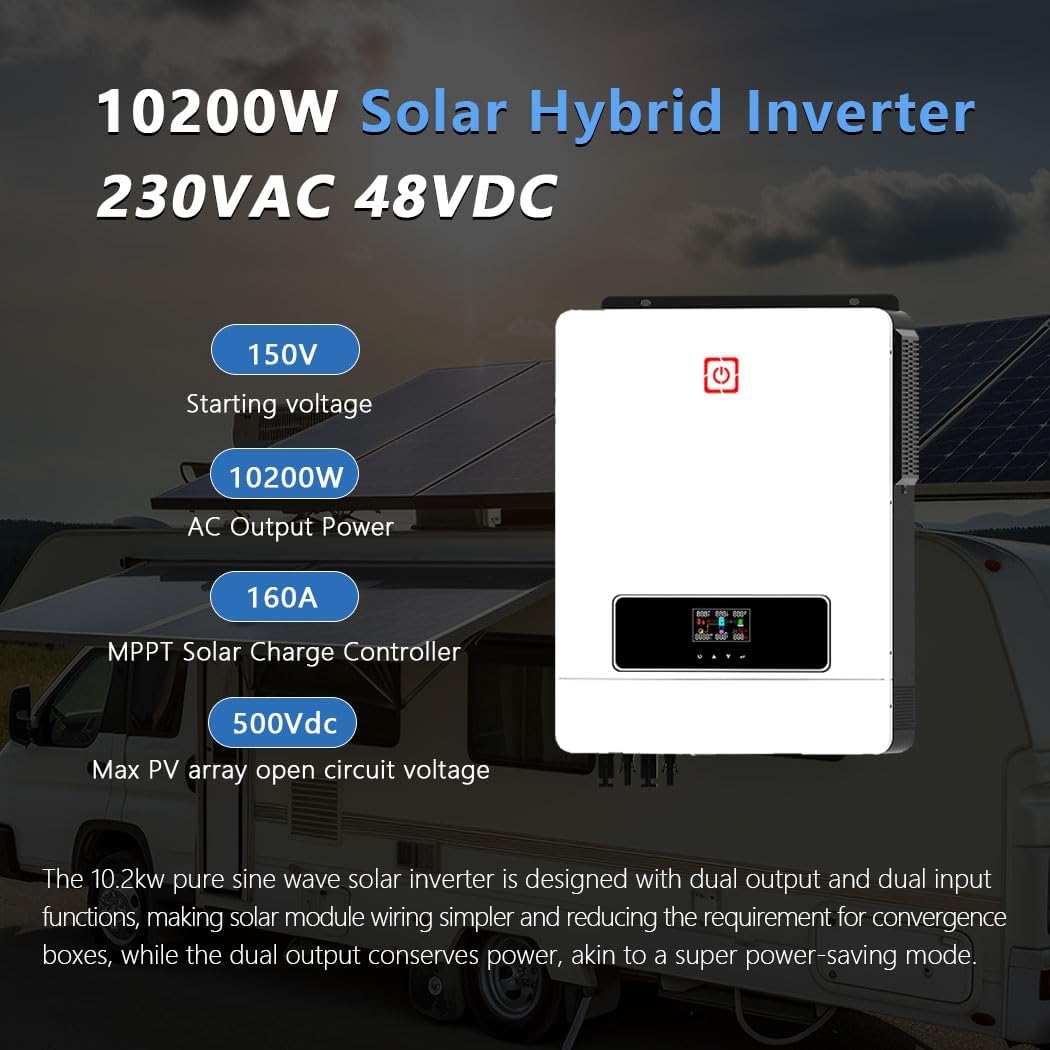

【TECHNICAL SPECIFICATIONS】10.2KW Hybrid Solar Inverter Max.PV Input Power: 10200W, Voltage range: 90-450Vdc, Max.PV Input VOC: 500V DC, Starting voltage >150V; The best working voltage is 300-360V;Recommended PV cable size: 10AWG, Max. charge current: 180A. Nominal Input Frequency: 50/60Hz; Output Power: 10200W, surge Capacity: 20400W.fit for 48V Lead-Acid (Seal, AGM,Gel, Flooded) and Lithium battery

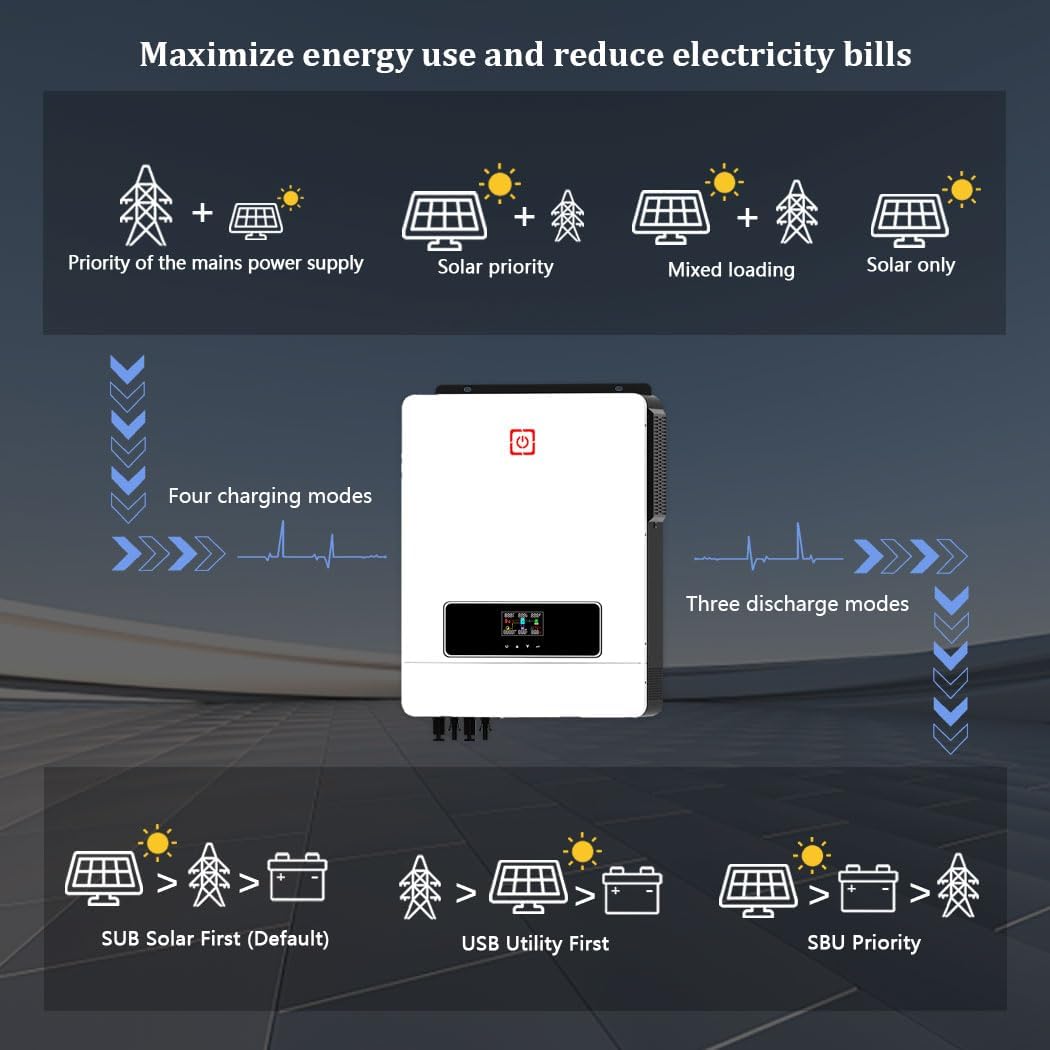

【MULTIPLE CHARGING MODES】Off Grid Solar Inverter have 4 charging modes are optional, i.e. Only Solar, Mains Frist , Solar Frist and Mains & Solar hybrid charging; and 3 output modes are available, i.e. Solar Frist, Mains Frist and SBU Priority, uninterrupted power supply to meet different application requirements. And compatible to mains voltage or generator power, Auto restart while AC is recovering.
【New features】Built-in BMS function. Lithium Battery Activation， has a reactivation feature to awaken a sleeping lithium battery. The small charge current to activate the protection circuit and if a correct cell voltage can be reached, it starts a normal charge.Dual AC output, one for the main load (UPS function), one for the conventional load.
【WIDE RANGE OF USES】MPPT Inverter Charger Pure sine Wave 10200W for RV Camping Boat Home Emergency ect.. Can be accessed to a variety of household and office loads, including Oven, rice cooker, lamps, televisions, fans and other AC loads.（Be careful not to install it near the bedroom, the fan will make a sound when the inverter is running. Avoid affecting your rest)
Note: After item 37 is set to “hyd”, item 01 will jump back to SUB mode instead of SBU mode.
For 110/120V US home appliances Devices,you can simply add a Transformer (not includes) which stepping down 220/240V AC power to 110/120V AC Power, then your 110V home appliances is also ok to use at the same time, this inverter can’t output 110V power, this is a Single-phase 220V output inverter. Ensure that you operate and use our products smoothly. Contact us if you have any questions.
