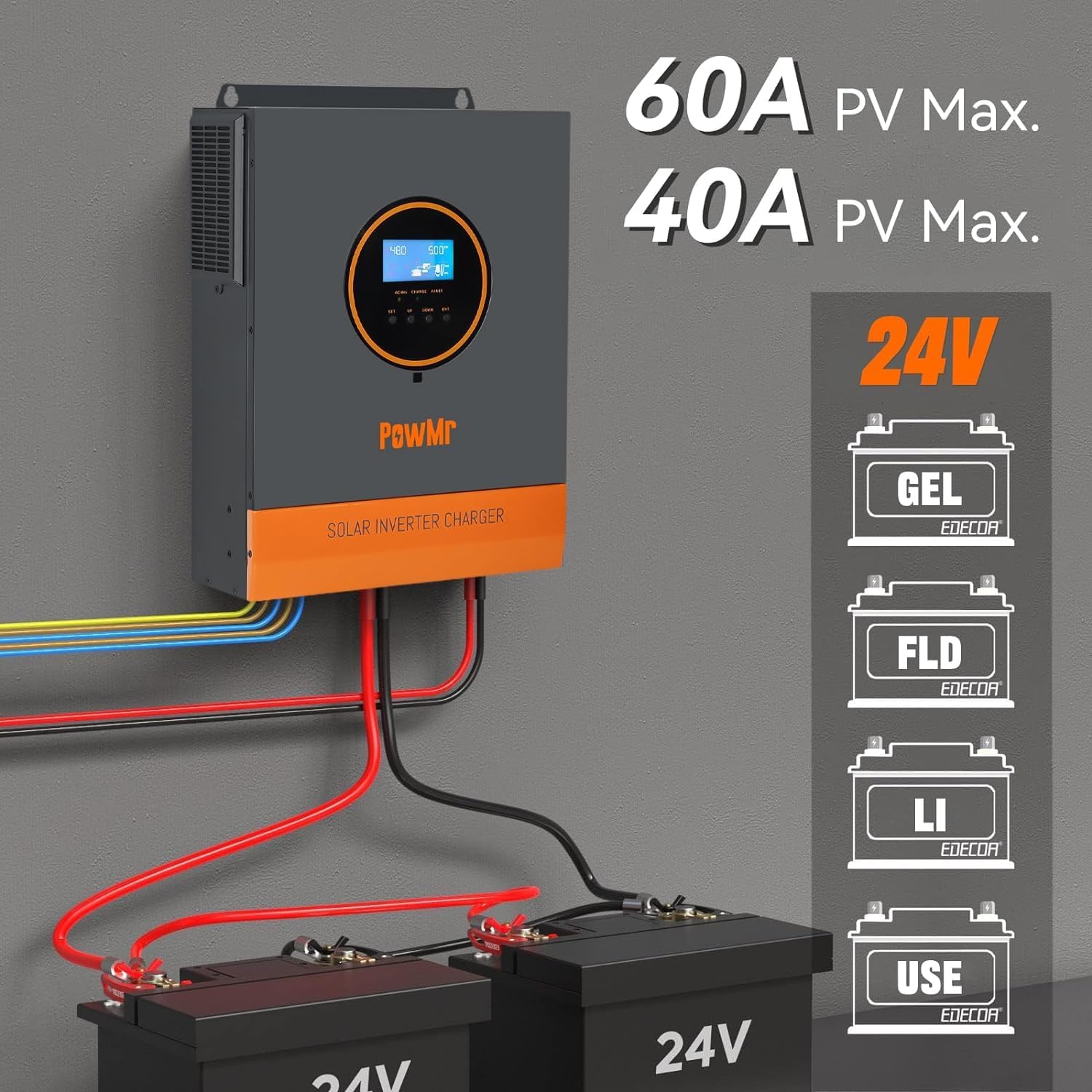

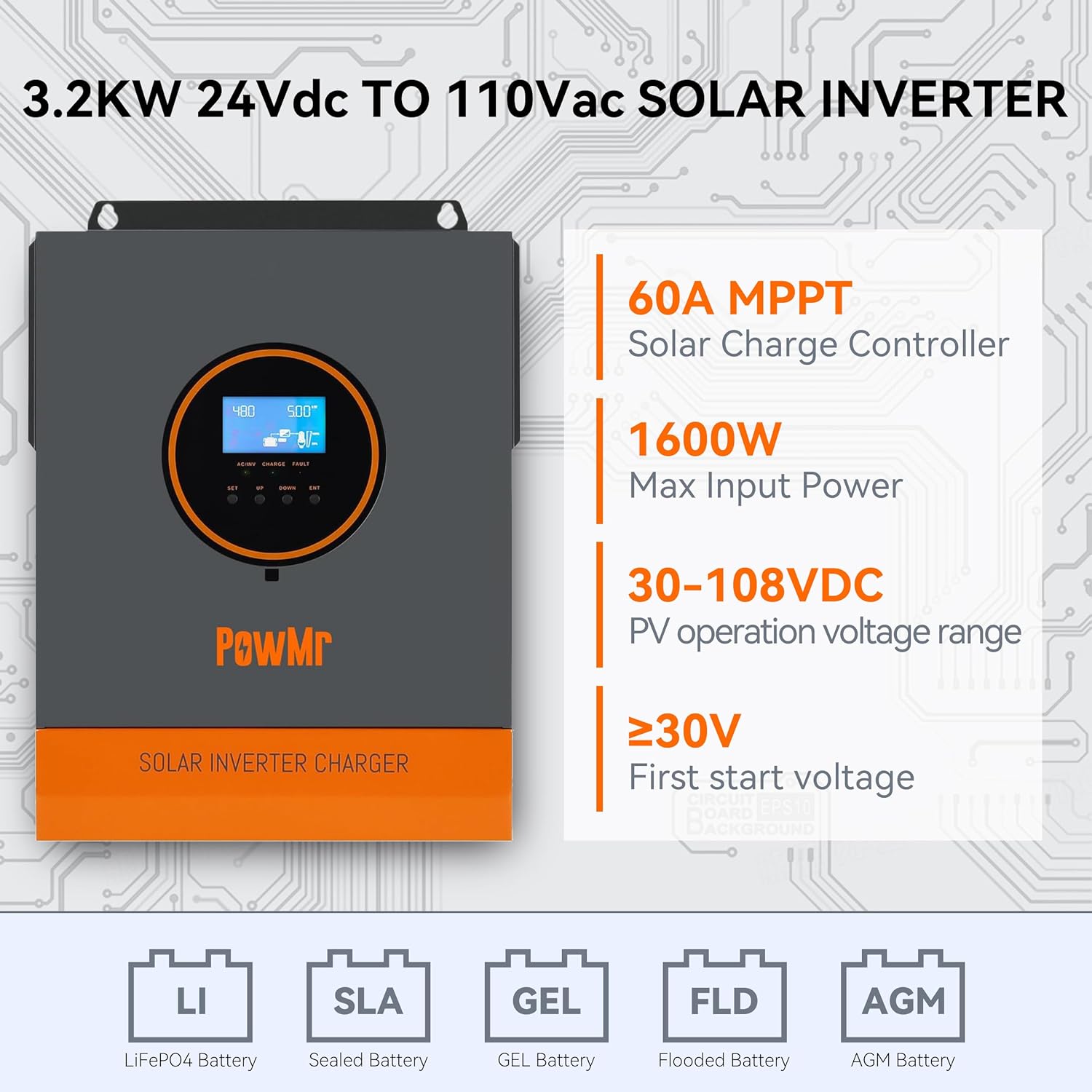

PowMr Solar Inverter 3200W 24VDC to 110VAC, 3.2KW Pure Sine Wave Inverter Bulit-in 60A MPPT Controller and with 40A AC Charger, Max.PV Input 1600W 108V, fit for Lead-Acid and Lithium Battery

Price: $439.99 - $359.99
(as of Feb 04, 2026 07:16:06 UTC – Details)

Product description

Setting Description of Key Operation Setting Item

After setting, it needs to be shut down and restarted, and the following logic needs to be followed when setting parameters:

a. [05] > [14]

b. [12]＜[04]＜[14]

c. [35]＜[05]＜[37]＜[09] = [11]

Charging Mode and Discharging Mode 4 Charging Mode+3 Load Working Mode

Battery Four Charging Mode：

CSO: Source Priority: Solar>Utility; CUB: Source Priority: Utility>SolarSNU (Default): Solar energy and utility will charge the battery at the same time; OSO: Solar energy will be the only charging source even if utility is available.

Three-Load Working Mode: SOL: Priority: Solar>Battery>Utility; UTI(Default): Priority: Utility>Solar>Battery; SBU: Battery power load first, then Utility.

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. video Merchant Video

Introduction to display icon Introduction to display icon and state of indicator light

The LCD display and 3 LED indicators can visually see the operating status of the solar inverter and perform programmable operations. The solar inverter charger has more than 20 programmable parameters, such as input/output voltage range, battery charging current, battery type, charging/discharging priority, etc

What kind of the inverter is suitable for your appliances?

Please know that load is divided into resistive load and inductive load .If you need the inverter to run the resistive load (like laptop, TV, electric cooker ), please choose the inverter with continuous power higher than the appliance’s rated power. And it is best to use 80% of the rated power. If you use microwaves, water pumps, air conditioners and other appliances with motors or compressors ,please choose the inverter whose continuous power is 3-10 times higher than your appliances.

Fault code meaning Universal method for troubleshooting:

1. Disconnect all connections in the system, wait for 10+ minutes, and then only connect the battery to start up, see if there is a fault code

2. Run the inverter with the current electrical appliance to see if there is a fault code.

3. Use different electrical appliances to operate the inverter

4. Connect solar energy, 5. Connect to mains power (If there one step has a fault code, terminated the next step immediately, except steps 2 and 3)

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. video Merchant Video

Meet the Power Demand on Different Occasions

Comparison Table of Product Parameters

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.0 out of 5 stars 162

3.6 out of 5 stars 132

4.6 out of 5 stars 23

—

4.0 out of 5 stars 162

2.7 out of 5 stars 5

Price

$359.99$359.99

$269.99$269.99

$349.99$349.99

—

$1,459.99$1,459.99

—

Can operate without battery

✘

✘

✘

✔

✔

✔

AC Output Voltage

120V±5%

120V±5%

120V/240V ±5%

120V/240V ±5%

120V/240V ±5%

120V/240V ±5%

AC Output Power

3200W

3000W

3000W

10000W

10000W

10000W

Max.PV Input Power

1600W

4000W

1600W

11000W

11000W

11000W

Max.PV Open Circuit Voltage

108V

150V

150VDC

500VDC

500VDC

600VDC

Max. PV Input Current

60A

13A

—

22A

22A

22A

Built-in MPPT controller

60A MPPT Controller

80A MPPT Controller

60A MPPT Controller

2x 100A MPPT Controller

2x 100A MPPT Controller

2x 100A MPPT Controller

PV Start-up Voltage

30V

150V

30V

150V

150V

150V

Can be connected in parallel?

✘

✘

✘

✘

✘

✔

Does it support split phase?

✘

✘

✔

✔

✘

✔

Peak Power

6000W

6000W

9000W

20000W

20000W

20000W

Can Feed the Grid (Utility)?

✘

✘

✘

✘

✘

✔

PURE SINE WAVE SOLAR INVERTER： 3200W solar inverter 24V 110Vac adopts full digital voltage and current double closed-loop control, advanced SPWM technology, and output of pure sine wave. It is a new solar inverter charger built-in 60A Mppt controller and a 40A AC Charger. Support Utility, Generator and Solar Charge
TECHNICAL SPECIFICATIONS： 3200-watt Inverter pure sine wave 24V DC to 120V AC. Max PV Input: 1600W, 108V(VOC), 40A; and Max.PV output: 60A; AC Rate Input/ output Voltage: 120Vac±5%; Hybrid charging Max charger current (AC charger+PV charger): 100A
Starting voltage >30V： This power inverter 110V is the Low voltage version, the maximum open circuit voltage is 108V, and the starting voltage only needs to be greater than 30V! Only 2-3 solar panels can start the inverter, the exact number of panels depends on the open circuit voltage of the solar panels. But note that the maximum PV input power of this low-voltage version with 108V is only 1600W
MULTIPLE CHARGING MODES： Off-grid Pure sine wave solar inverter will have four battery charging modes that are optional, i.e. only solar, utility priority, solar priority, and utility & solar hybrid charging; and three load output working modes are available, i.e. PV priority and utility priority and inverter mode, to meet different application requirements
w/LCD & LED DISPLAY： The 3200W Power inverter is designed with an LCD and 3 LED indicators for the dynamic display of system data and operating status, Intelligent variable speed fan to efficiently dissipate heat and extend system life. Can be accessed to a variety of household and office loads, including refrigerators, lamps, televisions, fans, air conditioning, and other AC loads
COMPATIBLE BATTERY TYPE： 3200w solar inverter 24V activates lithium battery by PV solar or mains, allowing access to the 24V lead-acid (Seal, AGM, Gel, Flooded) battery and lithium battery
