PowMr 100A MPPT Solar Charge Controller, 12V 24V 36V 48V Auto, Solar Controller PV Input Max 160V, Supports up to 12 Parallel Connections, Fit for AGM, Gel, FLD and Lithium【Update – Supports Parallel】

Price: $169.98
(as of Feb 11, 2026 02:34:41 UTC – Details)

Product description

1 Supported Battery Types

2 Protection Functions

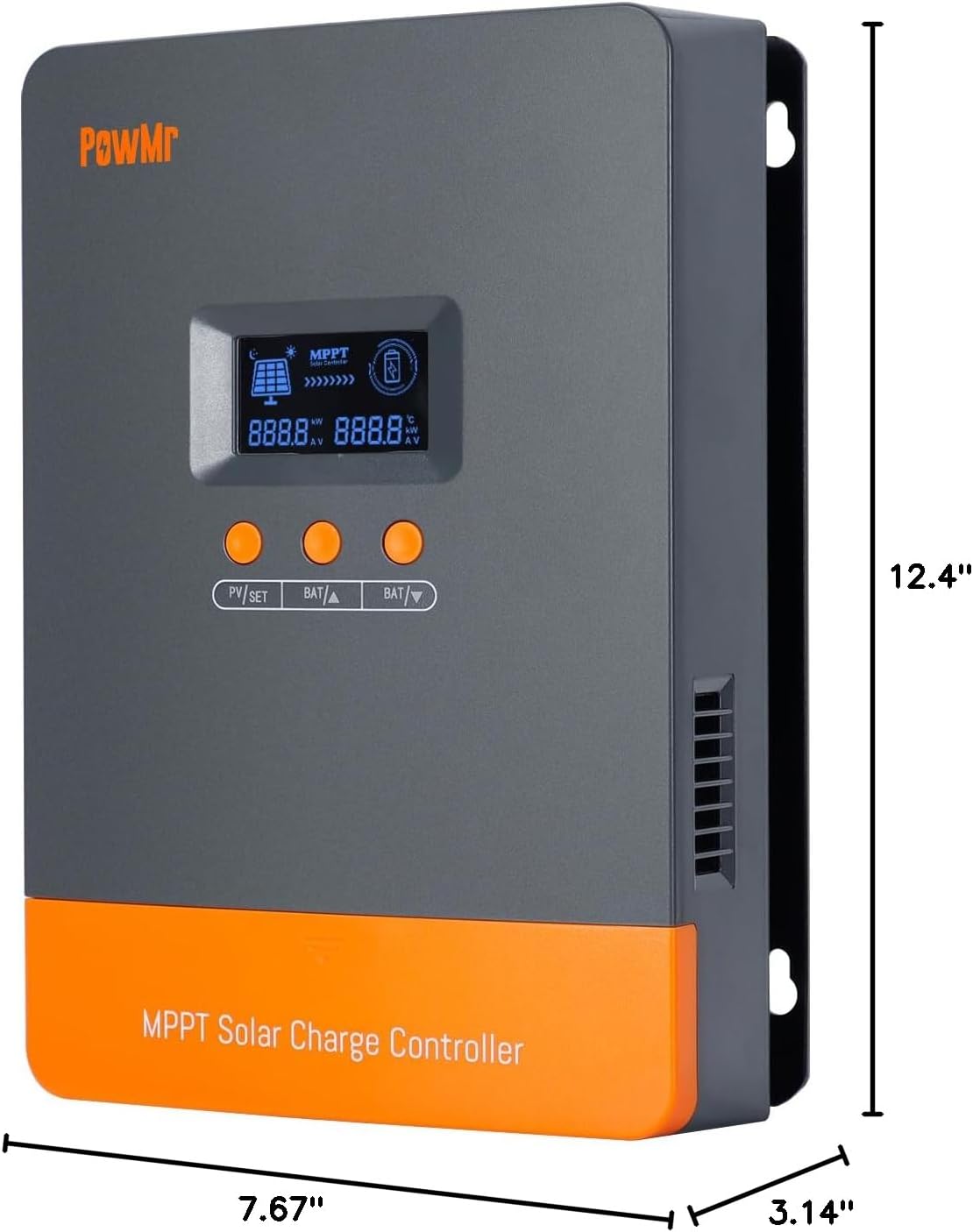

3 Product Appearance

1 Connect Diagram 2 Parallel Schematic

Multiple Models Available

Add to Cart

Add to Cart

Customer Reviews

4.2 out of 5 stars 252

4.2 out of 5 stars 252

4.2 out of 5 stars 252

4.2 out of 5 stars 252

Price

—

—

$118.99$118.99

$169.98$169.98

Models

60A MPPT Solar Controller

60A MPPT Solar Controller

80A MPPT Solar Controller

100A MPPT Solar Controller

System Voltage

12V/24V/36V/48V Auto

12V/24V/36V/48V Auto

12V/24V/36V/48V Auto

12V/24V/36V/48V Auto

Rated Current

60A

60A

80A

100A

Max. Input Power for 12V

720W 20-80Vdc;

720W 20-80Vdc;

960W 20V~80V

1200W 20V~80V

Max. Input Power for 24V

1440W 37-105Vdc;

1440W 37-105Vdc;

1920W 37V~105V

2400W 37V~105V

Max. Input Power for 36V

2100W 50-160Vdc;

2100W 50-160Vdc;

2880W 50V~160V

3600W 50V~160V

Max. Input Power for 48V

2800W 72-160Vdc.

2800W 72-160Vdc

3840W 72V~160V

4800W 72V~160V

Max. PV Open Circuit Voltage

160Vdc

160Vdc

160V

160V

Updated Point

Normal version

Enhanced LCD Display

Supports up to 12 Parallel

Supports up to 12 Parallel

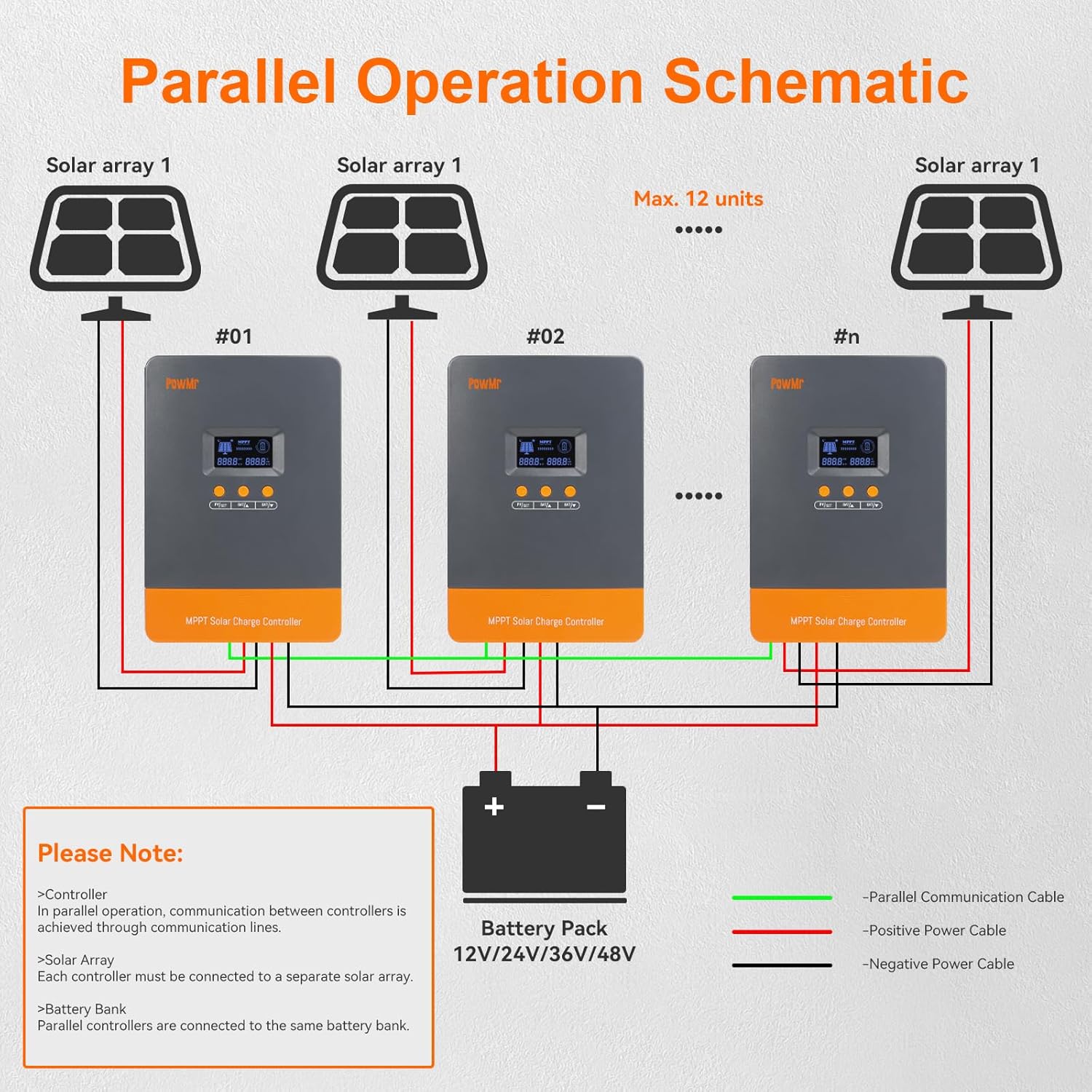

【Update1-Supports up to 12 units in parallel】This solar controller supports single unit standalone use as well as parallel use of multiple units. The parallel function makes it easy to expand the number of solar panel configurations and the upper limit of storage battery capacity of a solar system, thereby increasing the scale of energy storage.
【Update2-Multi-stage charge algorithm】There are 3 integrated charge modes (Bulk charge, Boost charge, Float charge). With the three-stage battery charging mode, the system can effectively optimise the charging cycle, and at the same time, it also has an adaptive boost charging function to avoid charging overtime and effectively extend the battery life.
【Efficient 100A MPPT Solar Charge Controller】The 100A mppt solar charge controller is compatible with 12V/24V/36V/48V system voltages and features innovative MPPT (Maximum Power Point Tracking) technology with tracking efficiencies up to 99% and peak conversion efficiencies up to 97%.
【Wide Range Voltage/Powe Support】100A Solar Controller supports High PV Input Power/Voltage. The charger controller can accept solar voltage up to 160V. When the battery is a 12V system, the recommended maximum PV input power is 1200W; For 24V system, the Max. is 2400W; For 36V system, the Max. is 3600W; For 48V system, Max. is 4800W.
【Support various types of batteries】Compatible with many types of 12/24/36/48V batteries, such as Lead-acid battery, Sealed battery, Gel battery, AGM battery, Flooded battery, Lithium battery and User-defined, easy switching by the control system. When the Battery Type parameter is set to Lithium Battery, there is also a lithium activation function.
【Full battery charging protection】Built-in PV array short-circuit protection, PV input over-current protection, load short-circuit protection, PV polarity reversal protection, battery polarity reversal protection, over-temperature protection and many other battery protection functions make it safer to use.
