MPPT Charge Controller 60 amp 12V/24V Auto, 60A Solar Panel Charge Regulator with Blacklight LCD Display Max 100V for Lead-Acid Sealed Gel AGM Flooded Lithium Battery

Price: $89.99
(as of Feb 12, 2026 02:05:49 UTC – Details)

Product description

Feature

Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99%.

High quality components, perfecting system performance, with maximum conversion efficiency of 98.5%.

Ultra-fast tracking speed and great tracking efficiency.

Wide MPP operating voltage range.

12/24VDC automatically identifying system voltage.

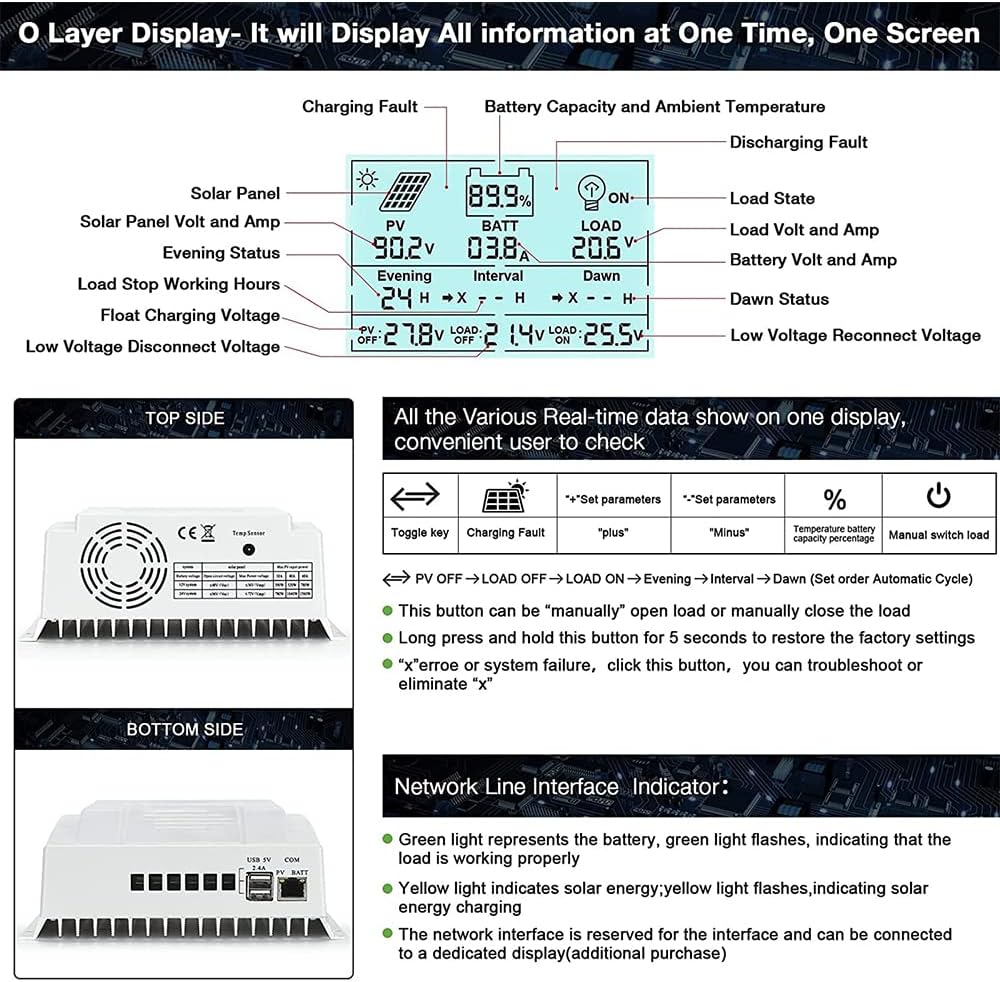

LCD panel display design, dynamically displaying tool‟s operating data and working condition.

Support 3 charging lead-acid battery options: Sealed, Gel, Flooded.

Battery temperature compensation function.

MPPT 20A 30A 40A

Package List:

1 x MPPT Solar Charge Controller

1 x Temperature sensor

1 x User Manual (English)

Added Features:

Blacklight LCD DisplayThe display directly shows the amount of charge: KWH, without the need for other measuring instrumentsTwo new vents are added for scientifically designed convection cooling.More Safety ProtectionMaximum DC/DC transfer efficiency is as high as 98.7%
Rated charge current:20A/30A/40A/60A 12V system:open circuit voltage ≤48V(Voc) maximum. PV input power:1200W 24V battery system:Open circuit voltage ≤96V(Voc) maximum.PV input power:2400W System nominal voltage :12V/24VDC Auto identifying Battery voltage range: 9V~32V Max.PV open circuit voltage:100VDC Power terminal:10 AWG Dimension: 10.82×7.36×3.34in Weight : 5LB

COPPER COILS

True MPPT controller, The Three copper coils play a step-down roles to make your system work more stable.

TRANSFORMER

Short-circuting

Reverse-current

Overcharging

Overload

Over-discharging

Reverse polarity protection

FAN COOLING

Good Heat Gissipation

Intelligence Fan-on temperature >45℃ and off < 40℃ , let your controller feel cooling.

Fan use BEARING technologies increase life UP TO 5000hrs in normal use.

PORTS DESIGN

We consider that the larger diameter of the wire will be greater cost for customers, so we designed two connectors for each pos and negs on solar and batteries connectors

MPPT technology

Automatically detect 12V or 24V DC system voltages

Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%

Various optional batteries

Deep cycle Sealed, Gel, Flooded and Lithium (12.8V LFP) battery option ready

Charges over-discharged lithium batteries

Protection System

Electronic protection: Overcharging, over-discharging, overload, and short circuit.

Reverse protection: Any combination of solar module and battery, without causing damage to any component

Customize charge controller

Customizable charging voltages

Positive ground charge controller

HOW TO WIRE YOUR SOLAR CONTROLLER?

Turn the adjusting screw counterclockwise until the plate moves downward.

Please peel off the coating of the cable tip by about 8 to 10 mm，Then Insert the wire into the new opening between the plate and the “top” of the terminal hole.

When turning the adjuster clockwise, the plate moves upward and crushes the wire in the hole of the terminal.

Make sure all connections going into and from the controller are tight.

IMPORTANT NOTE:

Make sure your battery must be atleast 60% charged prior to connecting to controller.

Always connect your battery first

Never connect your solar panel array to the controller without a battery.

Careful your input power and voltage does not exceed the max.

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

3.4 out of 5 stars 8

3.6 out of 5 stars 87

4.1 out of 5 stars 356

4.1 out of 5 stars 356

4.1 out of 5 stars 356

Price

$199.99$199.99 $209.99$209.99 $169.99$169.99 $89.99$89.99 $29.99$29.99

Battery System Voltage
12V/24V/36V/48V 12V/24V/36V/48V 12V 24V 12V 24V no data

Rated Current
100A 100A 80A 60A no data

Max Input Power
5000W 5000W 2600W 2000W no data

MPPT Solar Controller 60A —【 Battery type:】 LiFePO4, AGM is compatible with more battery charging;
MPPT Solar Controller 60A —【 The best open circuit voltage (Voc) of solar panels:】 12V system: Voc ≥18V, Voc≤96V; 24V system: Voc ≥36V, Voc≤96V; (automatic identification of 12V/24V system);
MPPT Solar Controller 60A —【 Charging current and MAX.PV input power:】 (12V/24 system) 60A: MAX.PV=750W/1500W;
MPPT Solar Controller 60A —【 Prevention:】 overcharge, overdischarge, overload, overheat, reverse polarity, lightning and other protection functions;
MPPT Solar Controller 60A —【 Worry-free installation and after-sales guarantee:】 professional technical team guides the installation; Amazon warehouse logistics;
