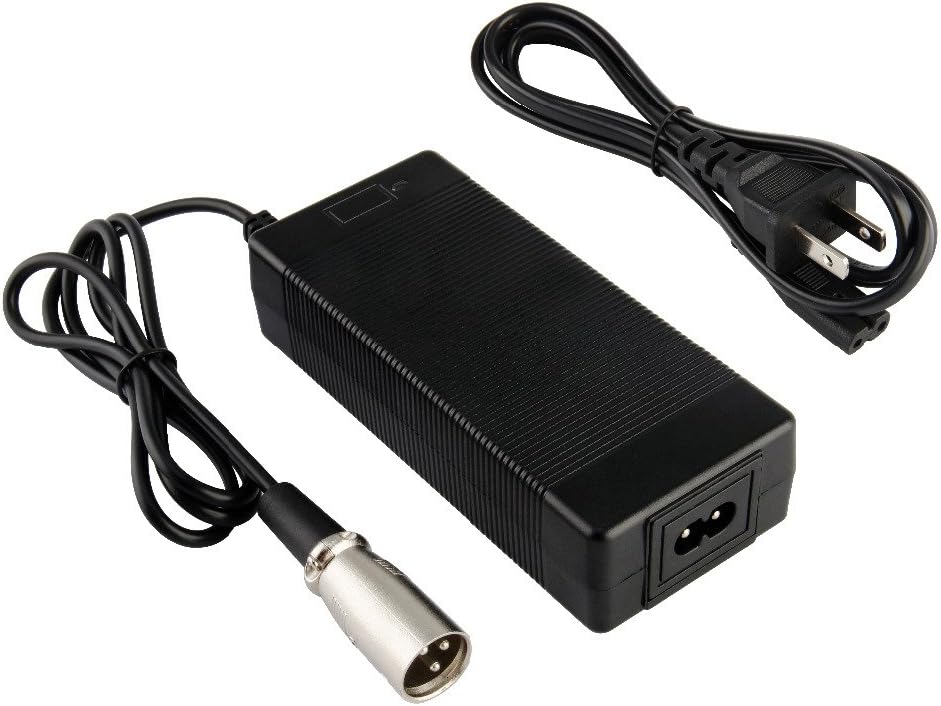

54.6V Charger 48V XLR Replacement Charger 54.6 Volt Output 1.5A for 48 V 13S 12Ah 15Ah 48 Volt Electric Lithium Battery

Price: $29.99 - $26.59
(as of Jan 29, 2026 07:04:55 UTC – Details)


Brand Name: Tangspower
Protections: Short circuit / Overload / Over voltage
LED Display: Red: In charging state, Green: Full Charged
Charge Mode: CC to CV
Use: lithium battery charger
Input Voltage: 100-240 V 50/60 HZ
Suitable Voltage / Frequency: 90-264 V 47 / 63Hz
Output Voltage: 54.6 V
Output current: 1.5A / 3A（select）
Power: 81.9 W
Productivity: 80%
Fluctuation / Noise: <100MV
Working temperature: 0-40 ° C
Storage Temperature: -20-85 ° C
Working Nemi: 5% ~ 90% RH
Storage Humidity li ion battery charger: 5% ~ 90% RH
Housing material: PC
Use and maintenance of the charger :
1. When charging, first connector to the battery, then connect to AC; after full, cut off AC,
then pull the battery plug. If you pull the battery plug first while charging, especially when
the charging current is large (red light), it is very easy to damage the charger.
2. LED display after turning green, then charge for 2-3 hours.
3. Please do not run out of battery power, then charger. Otherwise the battery cannot
be protected or even damaged. 4. long-term shallow discharge battery, about 3 months, for a deep discharge, is the
so-called re-lighting, which is conducive to the activation of long-term immobile material in
the deep part of the battery. Luminous means that riding the controller battery undervoltage
protection action 5. If your battery has not been used for a long time (2-3 months), please charge
the battery beforeusing it. Make sure your battery is not broken.
6.Please use the charger in a dry place in time.
7.When you do not use the charger, do not always connect the power supply.
8.Please confirm your battery, Because it is used to charge the lithium battery.
Do not use the charger on the LiFepo4 battery, otherwise the charger will be got incredibly hot.

Output 54.6V, World Wide Input Voltage 100-240VAC 50/60Hz, compatible with 48V 13S lithium batteries (Battery voltage: Should be 48V (13S lithium battery))
105℃ Output capacitor, global applicable AC Input voltage.100% full load aging test, Internal EMI filter, ripple minimum. The precision current between ±0.1A, the voltage tolerance is ±0.1V, absolutely not virtual marking
The charger Built-in simply fan, with radiating fin surrounding the board, dissipating the heat through the shell, So some hot on the shell when charging is very normal, but it is durable
The Charger protected: Our product is equipped with ‌thermal protection‌ and ‌overload protection‌ to prevent charging issues caused by overheating or excessive current; TANGSPOWER 54.6V Charger includes multiple safety protections including overcharge protection. It features thermal protection and overload protection to prevent charging issues from overheating or excessive current. The charger automatically stops charging when the battery is full (indicated by the green light), which prevents overcharging. It also has built-in protections for short circuit, overload, and over voltage situations.
This charger word with Rad Runner, Aventon Level. The charger outputs 54.6V at 1.5A, which is standard for 48V batteries, specifically 12Ah to 15Ah capacity batteries
