3000W Hybrid Inverter, 24Vdc to 110Vac Solar Inverter Charger Built-in 80A MPPT Controller, Pure Sine Wave PV Power Converter, Supports Battery-Less or AGM Lithium Battery

Price: $258.00
(as of Jan 29, 2026 23:08:10 UTC – Details)

Product description

Product Features：

Compatible work with lifepo4 battery via RS485Pure sine wavePower factor 1.0PVinput 500Vdc MaxBuilt-in MPPT100ACapable to work without batteryDetachable dust cover for harsh environmentWiFi remote monitoringEQ function to optimize battery performance and extend lifecycle

Note: The battery-free operation mode is recommended for emergency use only when sunlight is abundant and the photovoltaic system maintains a stable DC voltage of 130V. Long-term use is not advised.

You can configure it as follows:

01 Set to SBU, meaning solar power is the primary source, followed by battery power. Mains power will only supply electricity when both are unavailable;05 Configure based on your battery type (USE/AMG/LI2/LI4/LIB);

If selecting “User-Defined,” battery charging voltage and low DC cutoff voltage can be set in programs 26, 27, and 29.

If “LIB” is selected, the battery defaults apply to lithium batteries. Set the battery charging voltage and low DC cutoff voltage without communication functionality in programs 26, 27, and 29.

If “LI2/LI4” is selected, the battery defaults apply to lithium batteries. Set the battery charging voltage and low DC cutoff voltage with communication functionality in programs 43, 44, and 45.

Set battery charging mode 16 to OSO for solar-only battery charging;Set 43 to 5%, 44 to 60%, and 45 to 3%.

With this configuration, your inverter will prioritize solar power to supply your household loads. When solar power is insufficient to meet household load requirements, battery power will supplement solar power to supply the household loads. Only when both are unavailable will utility grid power activate to supply the household loads.

When your battery discharges to 5% (as set in 43), it automatically switches to utility power while simultaneously charging via solar. Once the battery reaches 60% charge (as set in 44), it reverts back to battery power. This maximizes solar energy utilization!

Multiple Output Modes: UTL/SOL/SBU/SUB

The default setting is utility-priority mode (UTL mode). You can arrange the output mode according to your needs!

In SOL mode, loads are primarily powered by solar energy. If solar energy is unavailable, loads are powered by the grid.

In SBU mode, solar energy is the primary power source. If solar energy is unavailable, loads are powered by the battery.

In SUB mode, the battery is primarily charged by solar energy and then supplies power to loads. When solar energy is unavailable, loads are powered by the grid.

Three Charging Modes: Solar Priority / Hybrid Charging / Solar-Only Charging

Via inverter setting [16], three battery charging modes can be configured: solar and grid hybrid charging (default setting), limited solar charging, and pure solar charging. Additionally, the inverter incorporates multiple protective functions to ensure safe and reliable charging. By adding a Battery Management System (BMS), battery status can be monitored to prevent overcharging or over-discharging, thereby extending battery lifespan.

Furthermore, the inverter includes a lithium battery activation feature (disabled by default), which can be enabled via inverter settings [42].

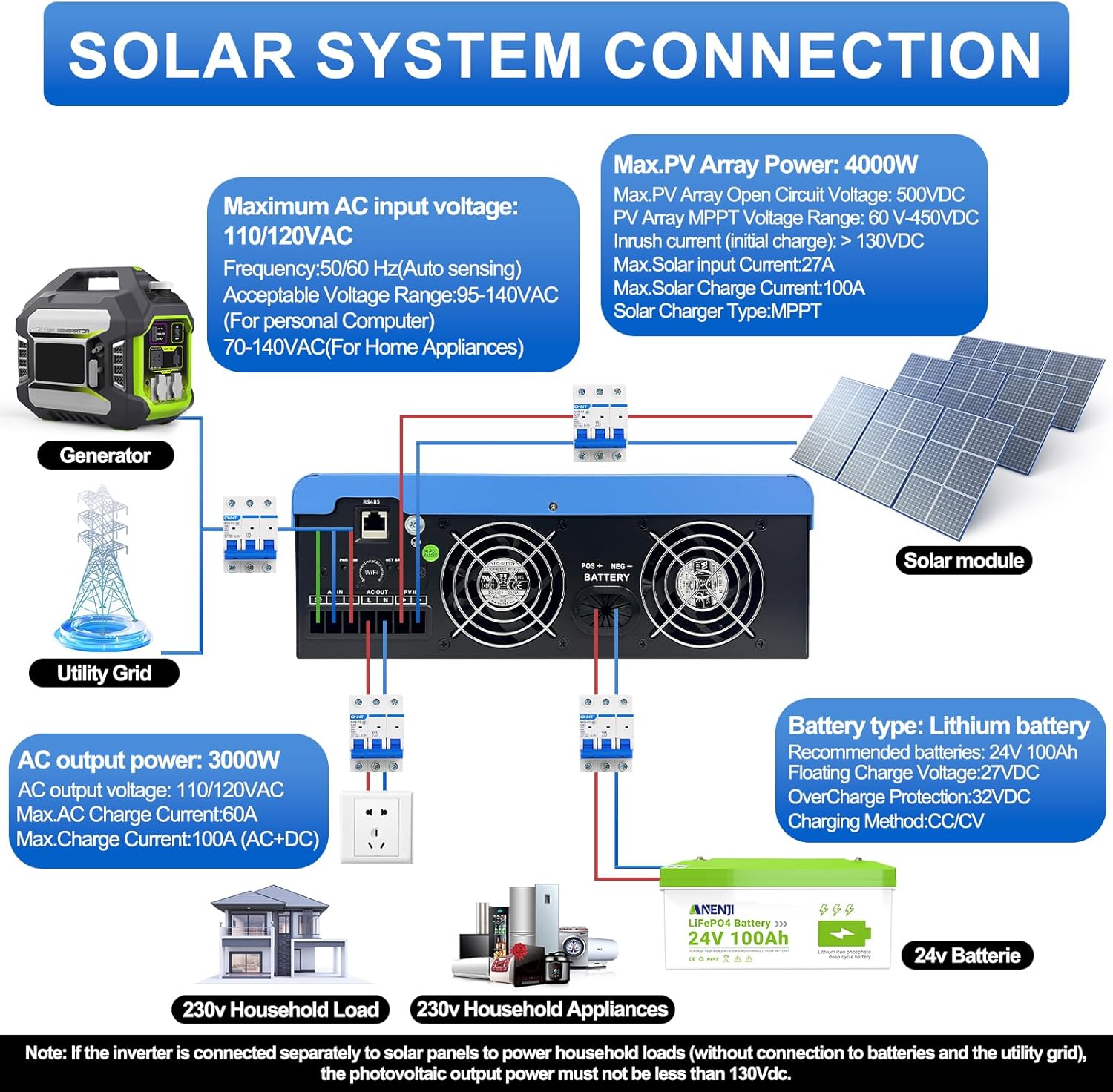

3000W HYBRID SOLAR INVERTER: Converts DC 24V to pure sine wave AC 110V, delivering 3,000W continuous and 6,000W peak output. Supports up to 4,000W PV input with 100A MPPT solar charging, maximum DC voltage 500V. Features 60A max AC input, 50/60Hz output frequency, starting voltage above 125VDC, and 100A maximum PV charging current. Designed for reliable off-grid solar systems in RVs, homes, cabins, and workshops.
BUILT-IN 100A MPPT SOLAR CHARGING CONTROLLER: Equipped with a high-efficiency 100A MPPT controller, this inverter maximizes solar energy harvesting—boosting charging efficiency by up to 30%. Compatible with high-voltage PV arrays (up to 500VDC), it ensures faster charging under varying light conditions.
SMART LCD SCREEN WITH REAL-TIME MONITORING: Features a responsive LCD screen and indicator LEDs for real-time monitoring of power input/output, battery status, and system alerts. Easily configure system settings such as charging current, voltage thresholds, and priority modes using intuitive control buttons.
FLEXIBLE CHARGING & OUTPUT MODES FOR ALL SCENARIOS: Choose from three charging modes (Solar Only, AC Priority, Hybrid Charging) and therr output modes (Mains Priority, PV Priority, Hybrid Output). Ensure a stable and uninterrupted power supply—even during outages or solar fluctuations.
SUPPORTS 24V BATTERIES: Fully compatible with AGM, GEL, Lead-acid, Li-ion, and LiFePO4 24V batteries, for direct solar-to-load applications. Built-in protections against overvoltage, undervoltage, reverse polarity, and short circuits help extend battery lifespan.
DURABLE & DUSTPROOF DESIGN: Featuring an aluminum casing for enhanced WiFi signal penetration., ideal for indoor or semi-outdoor use. Operates reliably under heat, humidity, or dust. Features smart cooling with a variable speed fan and Intelligent cooling based on power consumption.
WIDE APPLICATION COMPATIBILITY-NOT FOR PARALLEL USE: Perfect for running essential appliances like refrigerators, lights, fans, AC units, and tools. Works with municipal power or generators for flexible setups. Note: This inverter does not support parallel operation, but customizable voltage thresholds for critical loads.
