10.2KW Solar Hybrid Inverter All in One, 48V DC to 220V-230V AC On/Off Grid Pure Sine Wave Solar Inverter with 160A MPPT Charge Controller for Home Appliances, Work with Lead Acid & Lithium Battery

Price: $749.99 - $674.99
(as of Feb 01, 2026 09:22:29 UTC – Details)

Product description

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. Hybrid Solar Inverter Merchant Video

The MAX 10.2KW inverter has two AC outputs and two PV inputs, a new colour display for easier operation, the inverter is single-phase, does not support multi-phase or three-phase inverters, and does not support parallel connection.

1 Double MPPT Input

2 Cooling System

3 Full Protection

4 Indicator Light

5 Remote Monitoring

INPUT AC 230VAC Output frequency 50Hz/60Hz (automatic detection) Maximum efficiency 98% Transmission time 10ms typical（UPS）; 20ms typical（Apparatus） Battery voltage 48 VDC Waveform Pure sine wave Rated output power 10200W MPPT PV voltage range 90-450Vdc Maximum PV voltage 500Vdc Maximum AC+PV charging time 160A Maximum PV power 10200W Accreditation CE No-load power consumption >50W Operating temperature -10°C bis 50°C Dimensions (D*W*H) 535*400*135(MM) Net weight 16KG

1 Product Overview

2 Inputs and Outputs

3 Simple Installation

4 New Upgrade

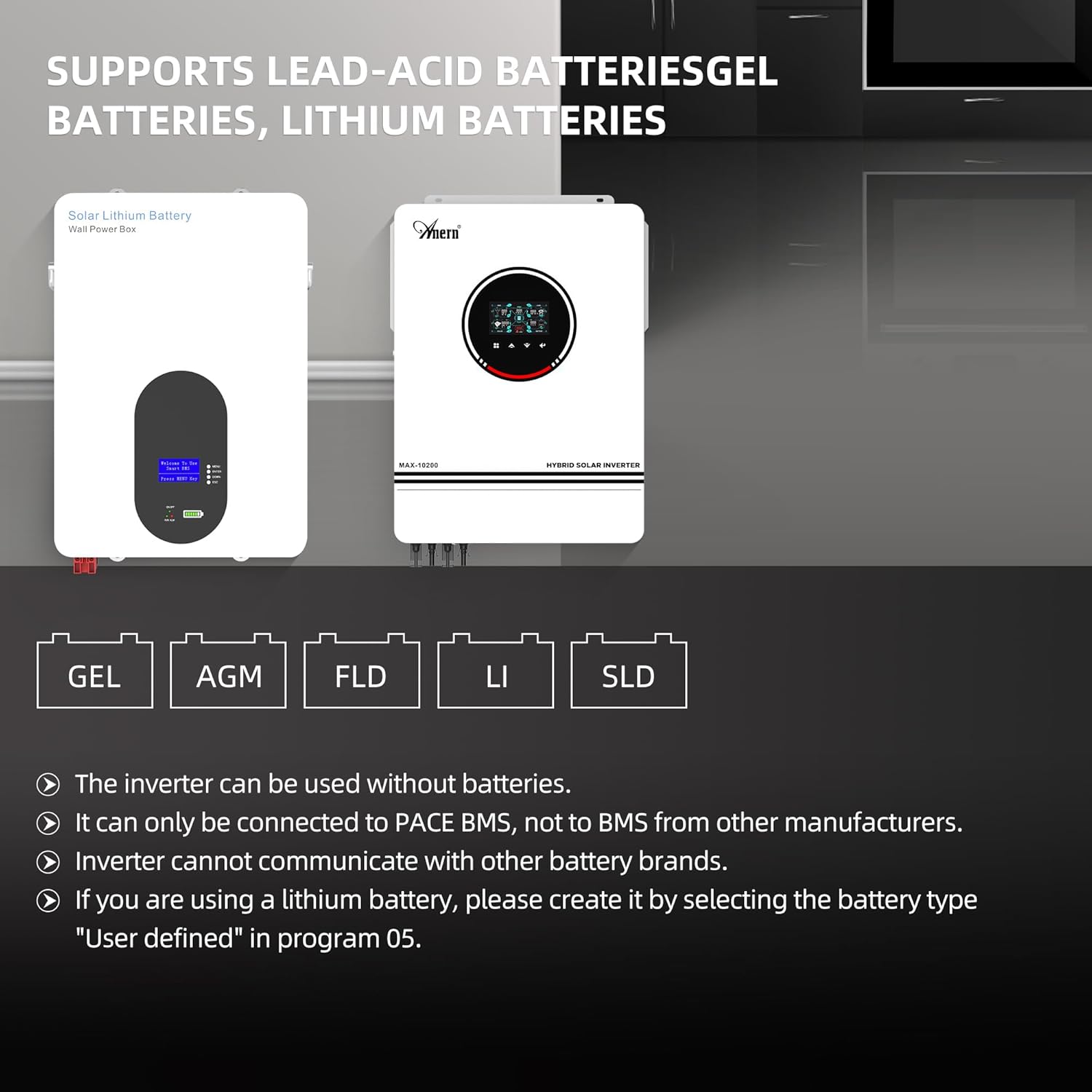

Suitable for Various Batteries

THIS INVERTER NOT APPLICABLE FOR 120V

This inverter features single-phase 220V output and does not directly supply 110V/120V power.It is not compatible with 120V-only appliances, nor does it support parallel connections or phase-splitting configurations in certain regions of the United States.Its output is fixed at single-phase 230V (within the 220V-240V standard range) and does not include a 110V AC output.

For use with 110V/120V American household appliances, you will need to add a step-down transformer (not included) to convert the 220V/240V output to 110V/120V.This allows simultaneous operation of your 110V/120V devices with the inverter.

To ensure optimal performance, it is critical to select a battery with sufficient capacity based on your specific load requirements and usage scenarios.Insufficient battery capacity may cause operational issues, while over-sizing could lead to unnecessary energy waste.For detailed guidance, please refer to the user manual or contact our support team for assistance.

Does it support two-phase or parallel connections?

The MAX 8.2/10.2kw inverter is single-phase, it does not support two-phase, three-phase or parallel connections.

Are the dual inputs of the MAX 10200W/8200W two MPPTs?

All devices have two photovoltaic inputs, 10.2 kW for two independent MPPTs with 18 A each and 8.2 kW for one MPPT with a total output of 27 A.

How can the inverter be connected to the grid to supply power to the company?

When hybrid mode is selected, grid connection must be requested from the local authority, otherwise power cannot be supplied to the grid.

WIFI Notes / Unable to connect to WIFI.

*You must select the local node at the time of registration, do not select nodes abroad.

*The collector only supports 2.4G/HZ band, not 5G/HZ band;

*The router IP must be set to dynamic IP.

Can the inverter communicate with batteries?

Incompatible with other brands of BMS batteries and cannot communicate with other batteries. The inverter has only one communication interface (WIFI and communication with lithium batteries).

【All in one solar inverter】10.2KW 48VDC to 230Vac, off grid solar inverter with 160A MPPT solar charge and discharge controller. Maximum photovoltaic input power: 10200W; Photovoltaic operating voltage range: 90Vdc-450Vdc; Max PV no-load voltage: 500Vdc; Maximum PV charging current: 160Amp; Rated output current: 44.3Amp.
【Double PV Inputs/Double AC Outputs】Double AC Inputs – Unlike the single MPPT of the EXPRO, the dual inputs of the MAX have two independent MPPTs. Double AC outputs – Under normal conditions, the primary and secondary outputs are used normally. If there is no PV and mains power and the battery voltage is too low, the primary circuit will shut off and only the secondary output is maintained to save power.
【Remote monitoring】the inverter supports WIFI/GPRS remote monitoring, so you can get the desired data and operate this solar inverter at any time. (Wi-Fi module not included in the kit).
【Multiple Charging & Output Modes】 3 charging modes are optional: solar, solar and utility only, solar priority; Output modes: solar priority, utility priority, SBU mode. The solar inverter provides multiple charging and output modes to meet different user application requirements.

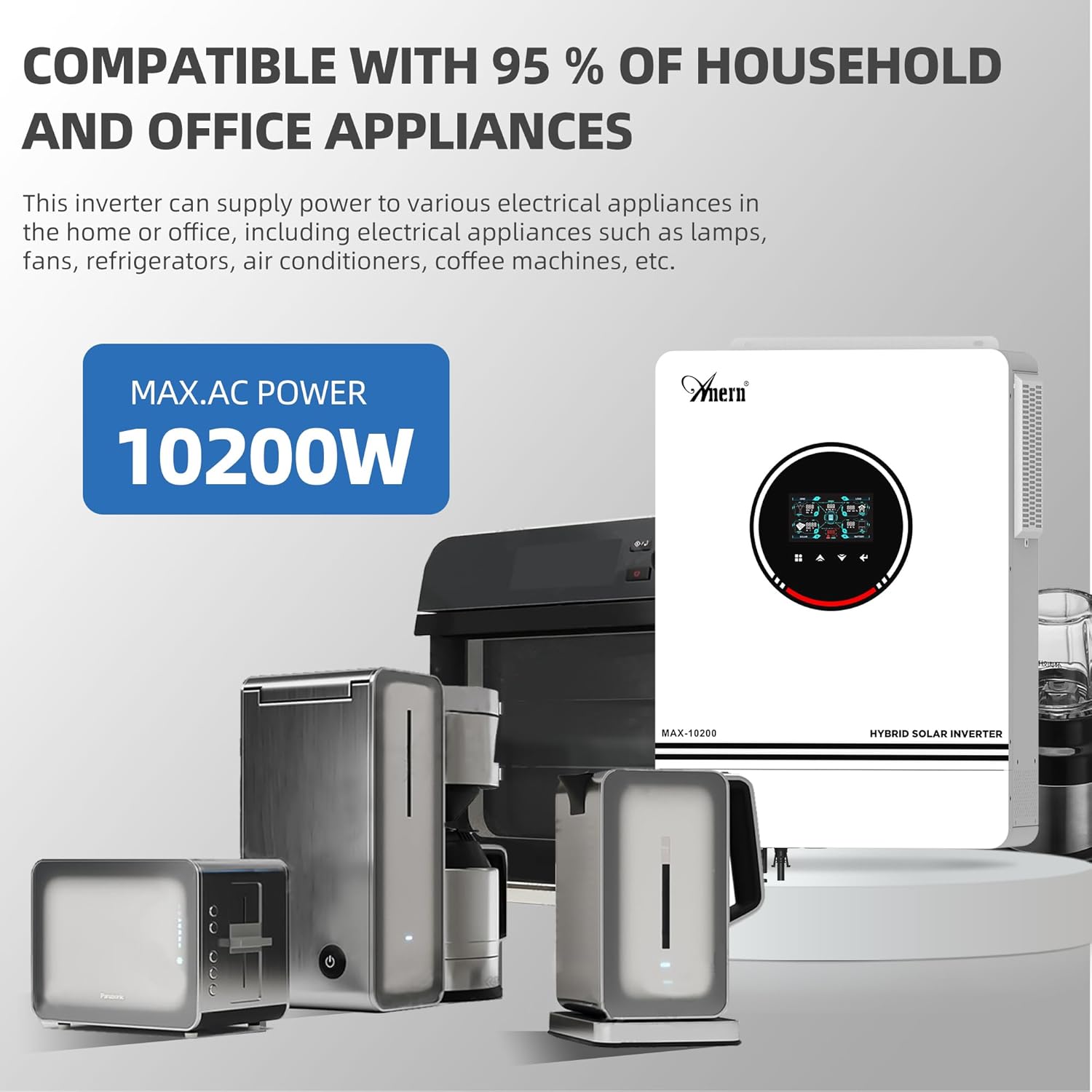

【Widely Use】This solar hybrid inverter adopts advanced pure sine wave technology, 48V Inverter with Smart battery charger design for optimized battery performance; Compatible with mains voltage or generator power; Can be accessed to a variety of household and office loads, including refrigerators, lamps, televisions, fans, air conditioning and other loads.
【Not applicable for 120V】This solar hybrid inverter in some parts of the US does not support parallel operation, nor does it support split phase operation! (Single phase/hot leg 230V output, not 110V AC output) For 110/120V US home appliance equipment, you can simply add a converter (not included) to step down the 220/240V AC power to 110/120V AC power, then your 110V home appliances can also be used at the same time.
